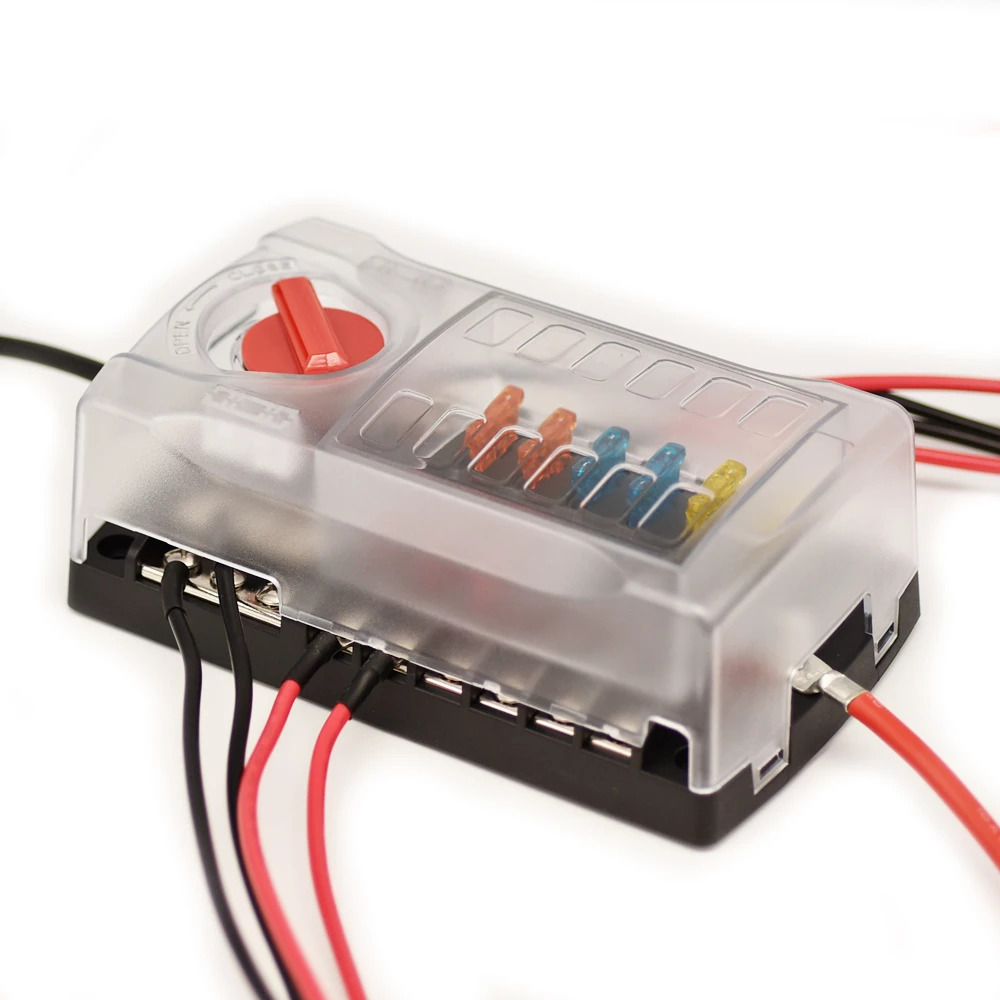

12 WAY FUSE HOLDER

Specification

[product material]: PA66 body, PC waterproof dust cover, nickel-plated copper connection terminal, sticker
[Input rated voltage]: 32V
[Output maximum current]: 30A per circuit
[Main line terminal]: M5 threaded stud
[Main line wire]: #4-8
[single line terminal]: M4 threaded stud
[single wire]: #12-16
[Product installation range]: Can be installed on cars, Yueshu, RV, bus, yacht, boat, etc.
[Product use range]: It can be directly connected to the line of any electric appliance on the car/ship [such as: roof lamp, car headlight, width lamp, fog lamp, warning light, car refrigerator, car charger, car fan, car TV, etc.

Features

[1] Jtron product adopts PBT anti-flame-resistance, high-low temperature and environmental protection materials, which fully meets [the fuse holder must have good mechanical strength, insulation, heat resistance and flame retardancy, and should not be broken, deformed or burned during use. Conditions such as short circuit

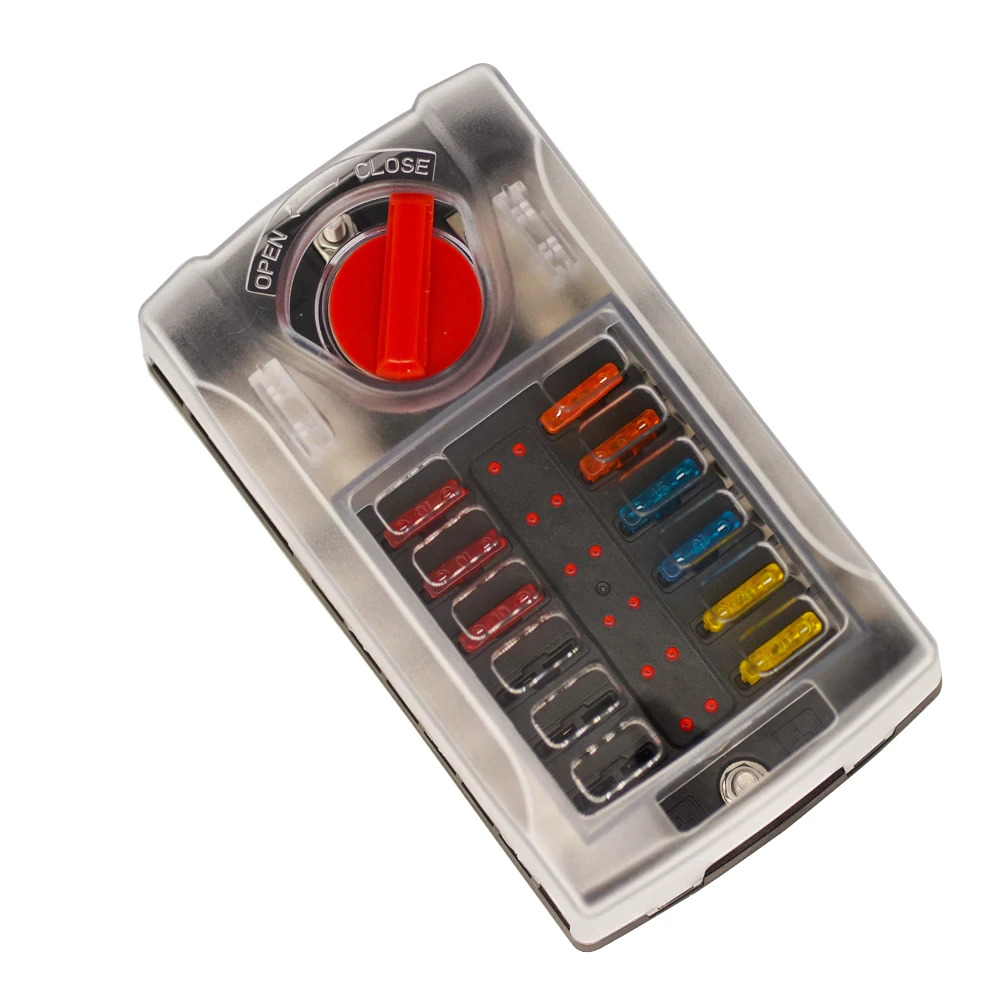

[2]Special fuse box cover design, with open-close switching of the cover, simple and easy to remove the cover, which is easier to operate than the old one.

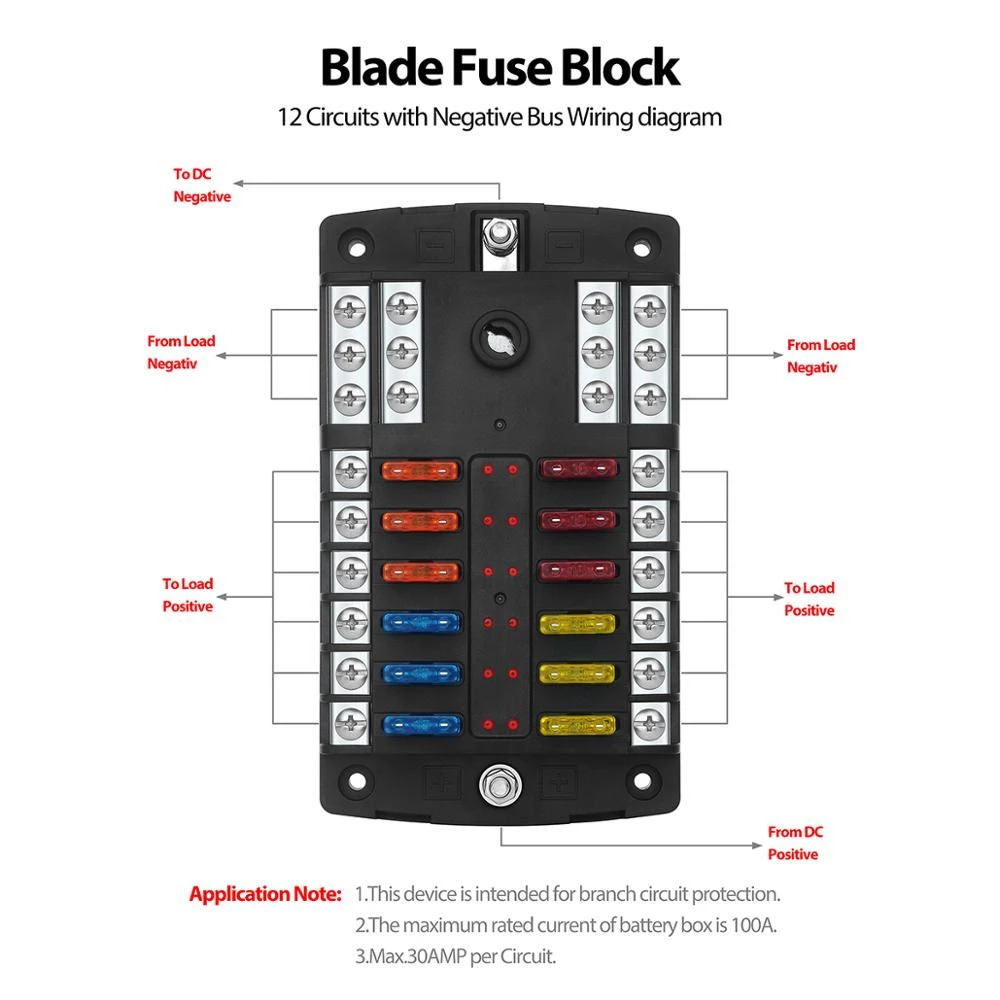

[3] All busbars and terminals are nickel-plated copper, which has corrosion resistance and excellent electrical conductivity.busbars M5 threaded studs(100A max),output terminal circuit 30A max per 1.
[4] All fasteners are made of stainless steel, the fuse box is input 4-8AWG in , 10-16awg output ,and the output end is fixed by tightening screws, which can be installed more quickly, and the safety box is fixed by self-tapping screws, which makes installation easier and safer.
[5] package include:12way fuse box x1;fuse:5A x5,10A x5,15A x5,20A x5,25A x5,fuse clipx1.screw x4, mark sticker x1.

SKU FH001
Brand Outback Vehicle Accessories
